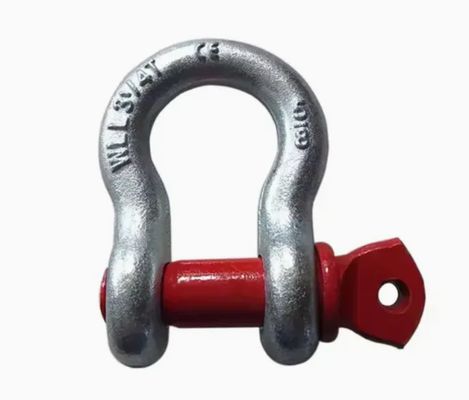

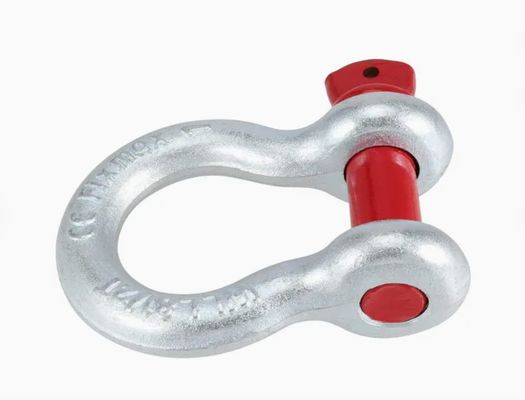

볼트 타입 오메가 앵커 샤클 (0.5-250톤 WLL) | 최대 안전 및 극한 하중용

Basic Properties
Place of Origin: 중국
Brand Name: Anfeng / AF
Certification: CE, GS, ISO
Model Number: JB-12.0
Trading Properties
Minimum Order Quantity: 500 개 PC
Price: Call or Email for quote
Payment Terms: t/t, l/c
Supply Ability: 한 달에 10,000 개
Product Summary
For the most critical, high-stakes lifting and mooring operations, the standard screw pin shackle is not enough. Introducing the Bolt Type Omega Anchor Shackle, engineered for permanent or semi-permanent applications where supreme security and unparalleled strength are non-negotiable. With a massive Working Load Limit (WLL) range from 0.5 to 250 tons, this shackle is the trusted connection point for heavy industries across New Zealand's ports, Europe's offshore wind farms,

Product Details

Product Name: 스크류 핀 족쇄, 타입 JB, 앵커 활 족쇄
Material: 꺼지고 완화시키는 합금 강철핀과 고성능 탄소강
Finish: 족쇄는 색칠한 은을 숙이고 고정합니다
WLL: 12 톤
Standard: ASME B30.26-2004, RR-C-271D
Type Of Shackle: 활 걸쇠
OEM Or ODM Services: 예, 요청하는 대로
Packaging: 통 + 팔레트 또는 나무상자 또는 관습
Product Description

가장 중요하고 고위급한 리프팅과 매어링 작업에는 표준 스크루 핀 셔클이 충분하지 않습니다.영구 또는 반 영구 용도로 설계되어 최고 보안과 비교할 수 없는 강도가 협상 불가능한 곳0.5~250톤의 막대한 작업 부하 제한 (WLL) 범위로, 이 매듭은 뉴질랜드의 항구, 유럽의 해상 풍력 발전소,그리고 북미의 주요 인프라 프로젝트.

영구적 으로 설계 되어 있으며 비교 할 수 없는 안전성

볼트 타입 (또는 앵커 타입) 디자인은 근본적으로 다릅니다. 손으로 단단히 매는 나사 핀 대신 견고한 볼트, 견과류 및 코터 핀 조립을 사용하여 포로가 된,비브레이션 단속기, 실수로 찢어질 수 없거나.

  • Cotter Pin & Collar 시스템 특허: 우리의 디자인은 표준 볼트를 초월합니다. 우리는 고탄력 강철 볼트를 사용,그리고 장착된 안전 목걸이와 함께 고정 잠금 cotter 핀이 삼중 조립은 극심 한 진동 또는 충격 부하에서도 핀이 안정적으로 유지되도록 보장하며 우연히 해체 될 위험을 효과적으로 제거합니다.

  • 최적화된 프로파일과 함께 오메가 활 디자인: "오메가" 명칭은 우리의 활의 독특하고 부드럽고 연속적인 기하학을 반영합니다.이 프로파일은 왕관과 핀 구멍에서 스트레스 농도를 최소화합니다, 더 효율적으로 부하를 분배합니다. 이것은 철회나 합성 슬링과 함께 사용할 때 가벼운 수명을 최대 20% 증가시킵니다.

  • 8등급 합금강에서 만들어집니다. 우리는 컴퓨터로 제어된 정밀한 열처리에 노출된 고급 8등급 (또는 동등한 800MPa) 합금강을 사용합니다.이것은 궁극적 인 팽창 강도와 충격 견고성의 최적의 균형을 보장합니다., 역동적 인 리프팅 및 혹독한 해상 환경에 적합합니다.

  • 초음파 정화 및 침투 코팅: 진열하기 전에, 각 매듭은 모든 가공 척추와 오염 물질을 제거하기 위해 초음파 정화됩니다.이것은 후속 핫디프 galvanized 코팅을 완벽하게 붙는 것을 보장, 염분 또는 부식성 대기에서 사용 수명을 크게 연장하여 부식이 시작되는 약한 지점이 없습니다.

왜 오메가 앵커 밧줄 이 당신 의 우월 한 선택 입니까?

  • 절대적인 핀 보안: 볼트 된 조립은 장기간, 진동 또는 뒤집어진 응용 프로그램에 가장 안전한 옵션이며, 스크루 핀이 단순히 할 수 없는 마음의 평화를 제공합니다.

  • 가혹한 조건에서 서비스 수명이 길어집니다. 우수한 8등급 재료, 최적화된 오메가 활 디자인, 그리고 흠없는 진식 보호가 결합되어 훨씬 더 긴 운영 수명을 제공합니다.전체 소유비용을 줄이는 것.

  • 고위험 산업에 대한 글로벌 준수: EN 13889, ASME B30을 포함한 가장 엄격한 국제 표준을 초과하기 위해 제조됩니다.26, 그리고 로이드 레지스터의 해양용으로, 세계적 프로젝트 사이트에서 수용을 보장합니다.

기술 사양



매개 변수 사양
소재 8 / 800MPa 합금 강철, 진압 및 완화
작업 부하 제한 (WLL) 0.5톤~250톤
설계 요인 51 최소 틈타 부하 (6: 1 해상 및 해상 등급)
핀 타입 볼트, 견과류 및 코터 핀 조립
끝내 ISO 1461 (표준) 에 맞게 핫-디프 진료; 전문 해상 코팅 (선택)
표준 EN 13889, ASME B3026, 로이드스 레지스터 / DNV-GL
확인 심층 레이저 엑트 WLL, 등급 및 고유 추적 코드

애플리케이션: 영구 리그 집합, 해상 매어링, 무거운 리프트 크레인 블록, 조선, 스파일링 및 드래거 장비 및 복잡한 슬링 구성에서 마스터 링크로 이상적입니다.

안전에 대한 골드 표준을 요구하십시오. 당신의 부하가 수백 톤으로 측정되면 타협은 옵션이 아닙니다. 흔들리지 않는 안전을 위해 볼트 타입 오메가 앵커 쉐인클을 지정하십시오.

사용자 지정 리프팅 솔루션 및 인증 기술 데이터 시트를 위해 저희에게 연락하십시오.
